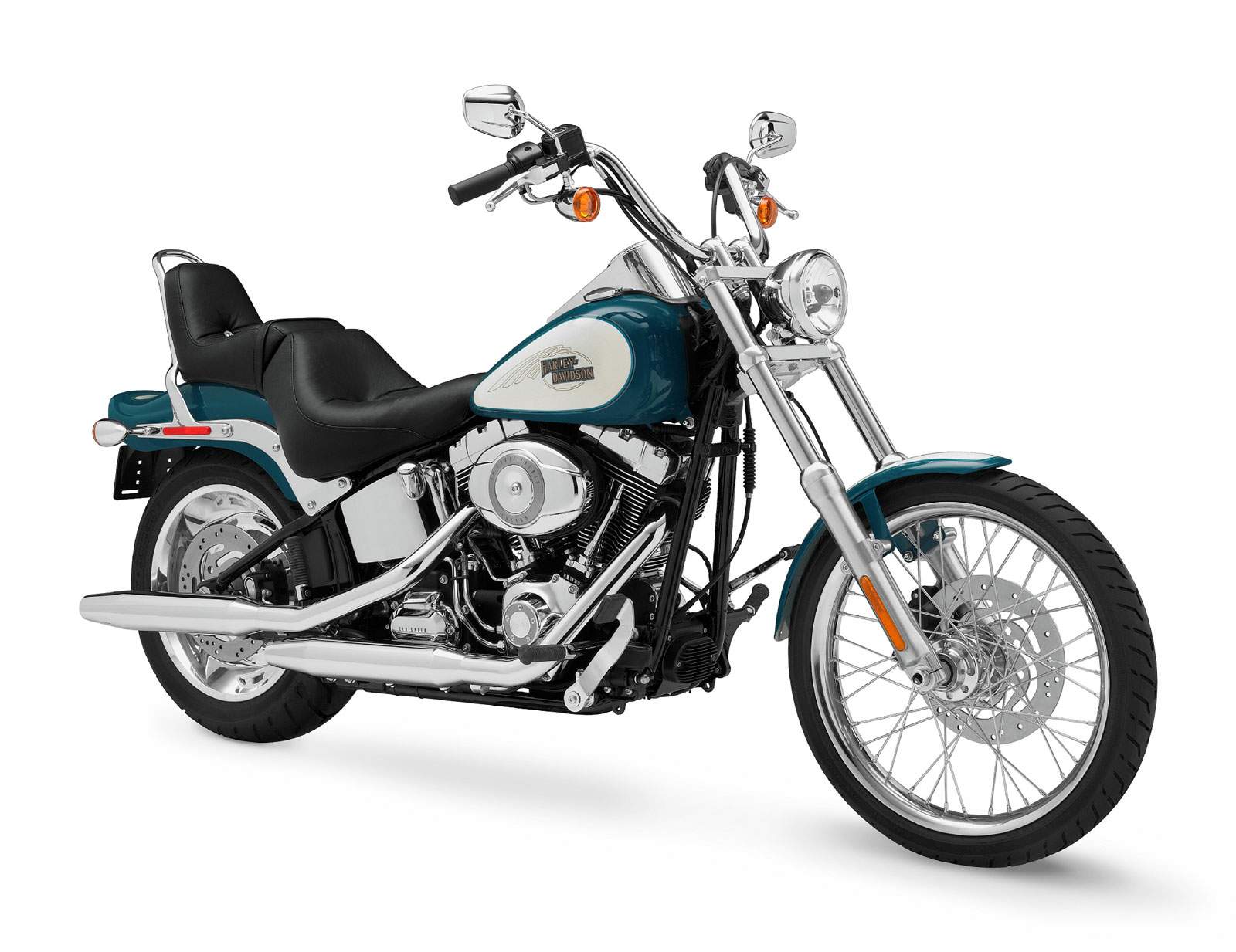

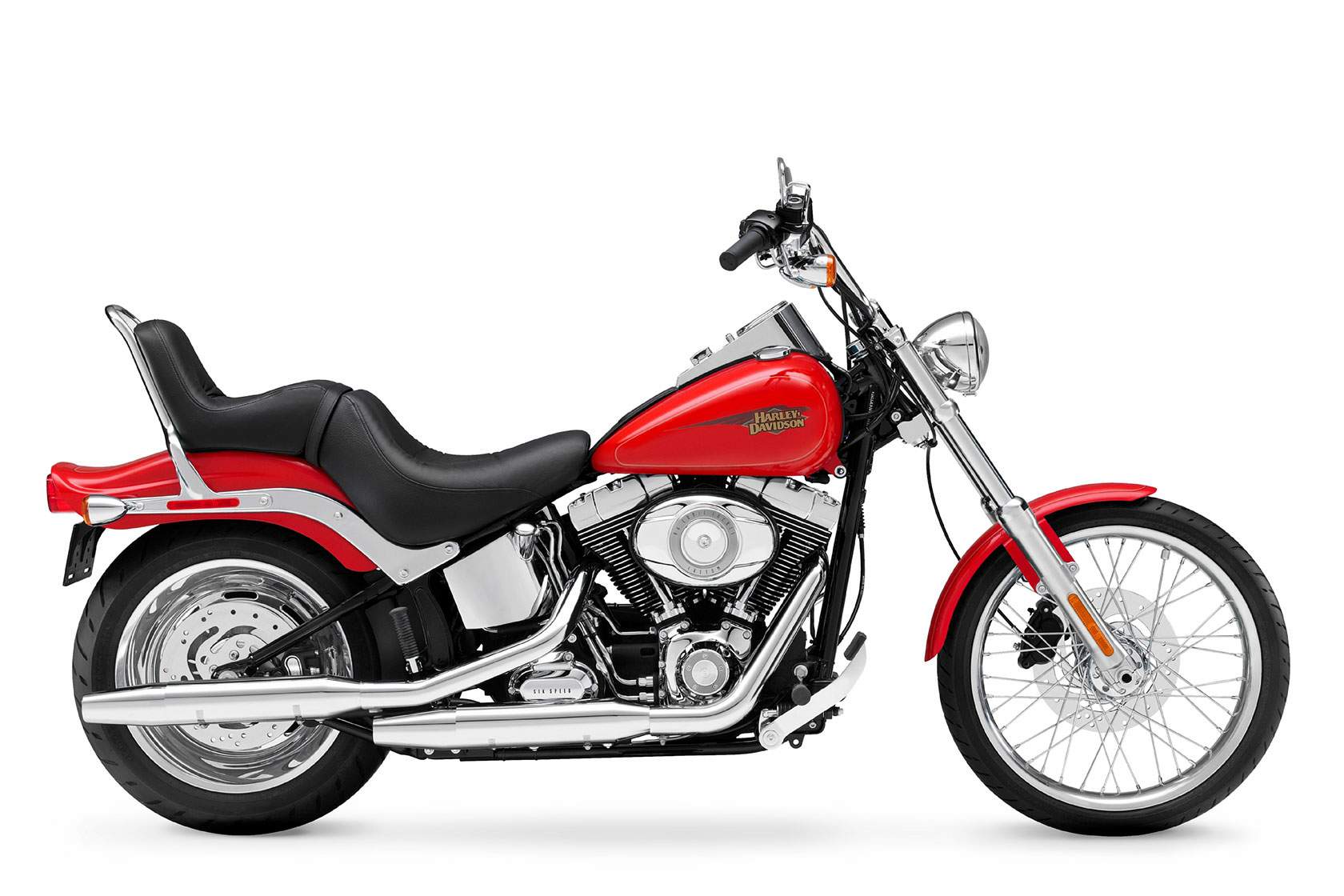

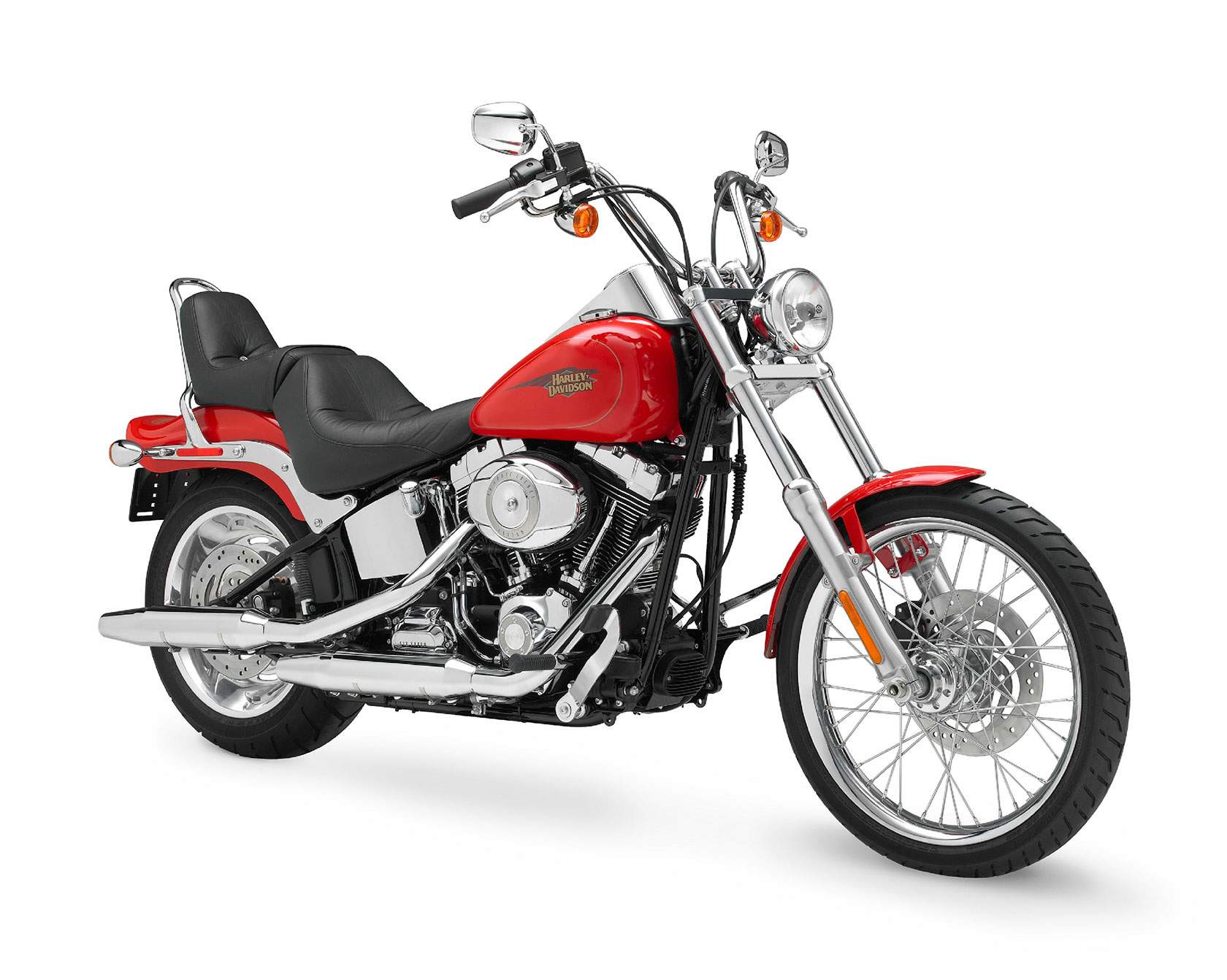

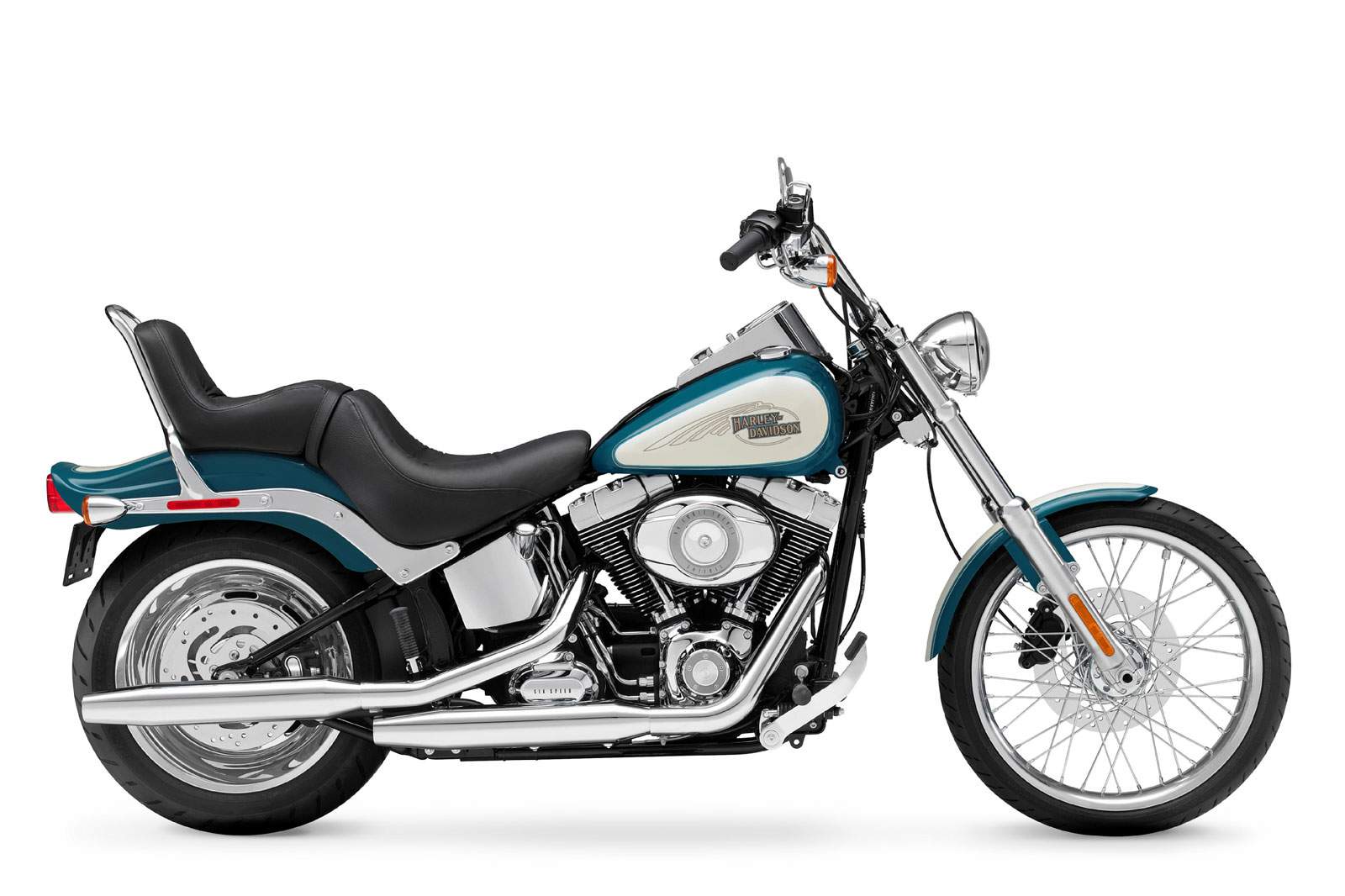

Harley Davidson FXSTC Softail Custom

Make Model

Harley Davidson FXSTC Softail Custom

Year

2009 - 10

Engine

Four stroke, 45� V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1584 cc / 96 cu-in
Bore x Stroke 95.3 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded

Front Suspension

41.3 mm telescopic, chrome dust covers

Rear Suspension

Hidden, horizontal-mounted, coil-over shock

Front Brakes

Single 292mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

MH90-21 54H

Rear Tyre

200/55R17 78V
Rake 32�
Trail 127 mm / 5.0 in
Fork Angle 33.5�
Dimensions

Length  2400.3 mm / 94.5 in

Width  927.1 mm / 36.5 in

Height 1313.1 mm / 51.7 in.

Wheelbase 1699.2 mm / 66.90 in
Seat Height Laden  670.56 mm / 26.40 in
Unladen 718.82 mm / 28.30 in
Dry Weight 304.8 kg / 672 lbs

Wet Weight

318 kg / 703 lbs

Fuel Capacity

18 9 Litres / 5 US gal

The Softail� Custom puts fists in the breeze and feet forward with a chopper profile straight from the FX custom era.

The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.

New Fuel tank sender for accurate fuel level readings
New Helical cut 5th gear for improved transmission sound
New Tank graphics

- Black powder-coated powertrain with chrome covers
- Chrome exhaust with dual staggered short mufflers
- Chrome, Profile Laced Aluminum front wheel
- Polished, Slotted Disc Forged Aluminum rear wheel
- 34-degree fork angle
- 200 mm rear tire
- Chrome nostalgic tank console
- Chrome bullet headlamp
- Chrome oil tank
- Chrome button tufted two-up seat with passenger backrest
- Stainless steel ape-hanger handlebar
- Skinny custom front fender
- Bobtail rear fender

The Softail� Custom puts fists in the breeze and feet forward with a chopper profile straight from
the FX custom era.

The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of a modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.

- Rigid-mounted, counter-balanced Twin Cam 96B� V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
- 6-Speed Cruise Drive� Transmission
- Horseshoe oil tank
- Forward foot controls
- Five-gallon fuel tank
- Optional Harley-Davidson� Smart Security System with hands-free security fob
- Optional Chrome, Profile Laced Aluminum rear wheel
- Optional Custom Color program
